Stainless Steel 0Cr13Ni4Mo Forged CNC Machine Pelton Turbine Runner with Diameter Below 2.5m

Descrition:

The Pelton turbine is widely used in hydropower station with the heads from 80-800m.
Pelton turbine is consisted of runner, turbine case, nozzles assembly, inlet pipe, deflector etc. The runner is assembled in the shaft of the generator, torque transmission by ping.
lt utilizes the dynamic power of high pressure water flow to rotate the runner and force the rotor work, The centre line of the jet is in the same plane as the runner while rotating.
Pelton turbine has the advantages of compact construction, stable running and easy operation.
It is consisted of rotator part, main body of turbine, bearing assembly, nozzles assembly, conduit part, deflector control mechanism etc, the unit uses two-fulcrum structure. The runner is assembled in the shaft of the generator, torque transmission by ping, nozzle pipe is supported by case, and there is a bend before nozzle pipe, expansion joint and gate valve. There is deflector assembled in the nozzle pipe, the needle server-motor connected with needle stem, deflector and needle is controlled by the governor separately.

Normally, Small pelton turbine always arranged with horizontal shaft and one or two nozzles, Medium size and larger Pelton turbines are most often arranged with vertical shaft, and equip four or six nozzles to obtain more power.

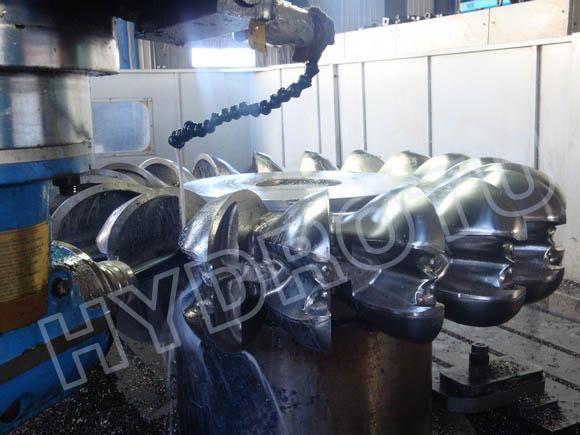

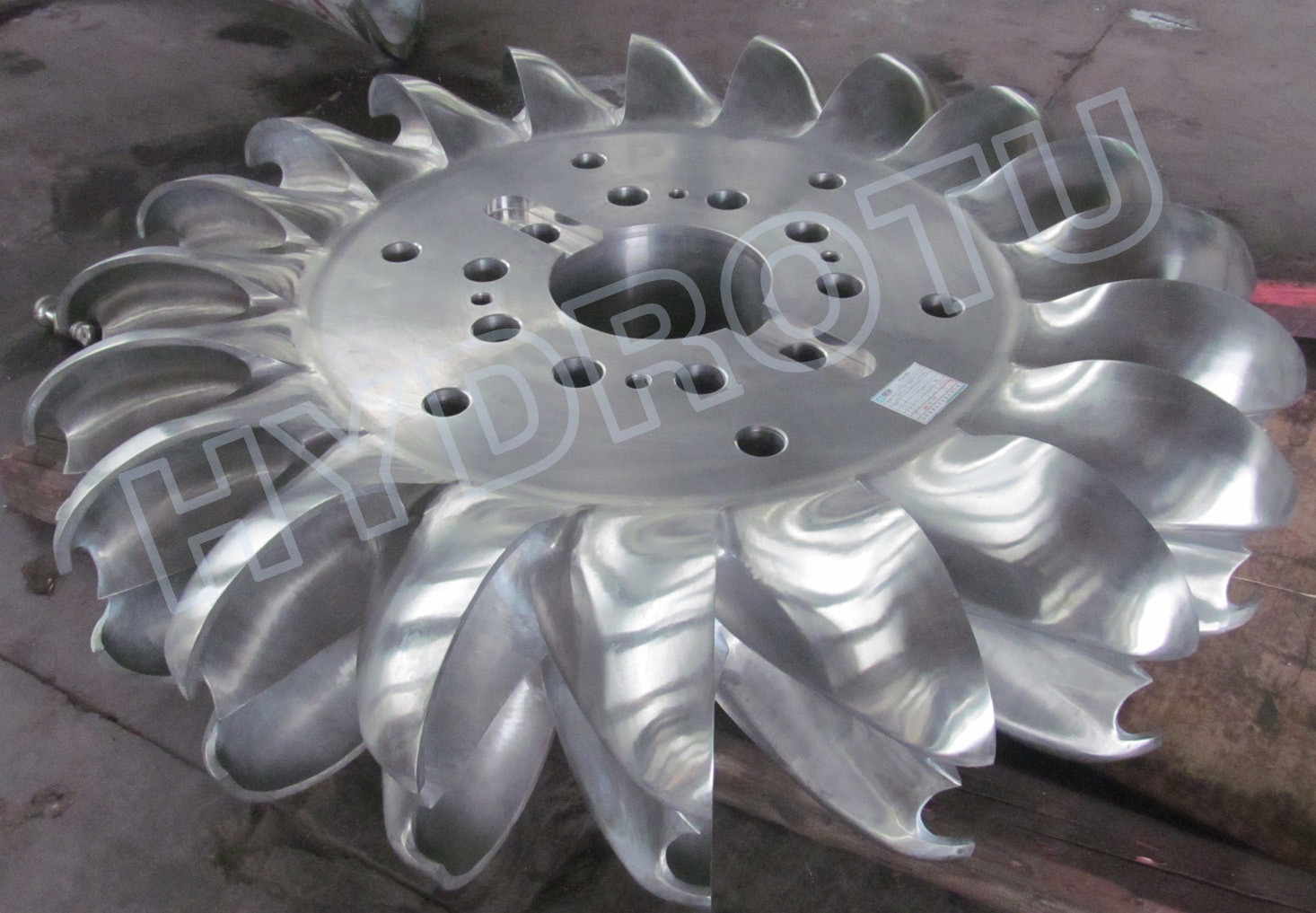

Our pelton runner used high strength stainless steel material, with Cast machining or Forge CNC machining, it is have a good profile and high efficiency.

Applications:

1. Water head: 80m -- 1000m

2. Power: 0.5MW -- 20MW

3. Machining type: Cast abrading or monoblock Forge CNC

4. Diameter: below 2.5m

If you are interest in the Pelton turbine, you should send some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.

We can offer pelton turbine runner above 500KW, supply the runner with Forge and CNC machine, or runner with cast abrading machine for your require.
