Small Horizontal Shaft Pelton Hydro Turbine / Pelton Water Turbine With One Or Two Nozzles

Ask Lasest Price
Brand Name :	Hydrotu
Certification :	CE
Model Number :	Pelton Turbine
Price :	Negotiable
Delivery Time :	Negotiable
Payment Terms :	L/C,T/T

Add to Cart

Product Details
Company Profile

Small Horizontal Shaft Pelton Hydro Turbine / Pelton Water Turbine With One Or Two Nozzles

Small Horizontal Shaft Pelton Water Turbine / Pelton Hydro Turbine with one or two Nozzles

Descrition:

The Pelton turbine is widely used in hydropower station with the heads from 80-1600m.

Pelton turbine is consisted of runner, turbine case, nozzles assembly, inlet pipe, deflector etc. The runner is assembled in the shaft of the generator, torque transmission by ping.

lt utilizes the dynamic power of high pressure water flow to rotate the runner and force the rotor work, The centre line of the jet is in the same plane as the runner while rotating.

Pelton turbine has the advantages of compact construction, stable running and easy operation. Normally, Small pelton turbine always arranged with horizontal shaft and one or two nozzles, Medium size and larger Pelton turbines are most often arranged with vertical shaft, and equip four or six nozzles to obtain more power.

Applications:

1. Water head: 80m - 1000m

2. Power: 0.5MW - 20MW

3. Frequency: 50hz /60hz

4. Generator Output Type: 0.4KV, 6.3KV, or 10.5KV AC three phase,

If you are interested in the Pelton turbine, you should send some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.

We can offer pelton turbine generator above 500KW, supply the runner with Forge and CNC machine, or runner with cast abrading machine for your require.

Specifications:

Type	Horizontal pelton turbine with one /two nozzles Vertical pelton turbine with four nozzles
Water head	80m - 1000m.
Installation capacity	500KW - 20000KW
Runner material	Stainless steel (0Cr13Ni4Mo) Cast machine/Forge + CNC machine
Generator type	Synchronous generator
Auxiliary Equipment	Governor, Inlet Valve, unit side panel, excitation system

500KW Small Horizontal Shaft Francis Hydro Turbine / Francis Water Turbine generator

Competitive Advantage:

HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.

With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.

HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.

Small Horizontal Shaft Pelton Hydro Turbine / Pelton Water Turbine With One Or Two Nozzles

Product Tags:


*From:	Your email address is incorrect!
*To:	Hangzhou Hydrotu Engineering Co.,Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more Pelton Hydro Turbine products from this supplier

Find Similar Products By Category:

Food & Beverage

Hot Searches:

Country	Project Name	Turbine Type	Project parameter	Operation Year	Supplier
Turkey	KOZAK 2x2200KW	V-Kaplan D1=130cm	Hr=23.0m, Qr=11m3/s, n=500rpm	2007	Hydrotu
Turkey	TAYFUN 2x500KW	H-Francis D1=53cm	Hr=55.0m, Qr=1.05m3/s n=1000rpm	2007	Hydrotu
Turkey	GUNESLI 1200KW+600KW	H=Francis D1=60cm+53cm	Hr=65.0cm, Qr=2.2+1.1m3/s n=1000rpm	2007	Hydrotu
Canada	KLEMTU 1x1800KW	H-Pelton D1=82cm	Hr=310m,Qr=0.66m3/s n=900rpm	2007	Hydrotu
Turkey	GEMKOPRU 2x820KW	H-Francis D1=61cm	Hr=87.0m, Qr=1.12m3/s, n=1000rpm	2008	Hydrotu
Turkey	UCKAYA 800KW+320KW	H-Francis &H-Turgo	Hr=107.6,Qr=0.8+0.36m3/s n=1000rpm	2008	Hydrotu
Turkey	KOYABASI 750KW+320KW	H-Francis D1=60+50cm	Hr=80.0cm,Qr=1.13+0.487m3/s n=1000rpm	2008.1	Hydrotu
Turkey	EGE-1 2X460KW	H-Francis D1=65cm	Hr=21.7m,Qr=2.52m3/s, n=600rpm	2008.3	Hydrotu
Turkey	YILDIZLI 2X600KW	H-Francis D1=51cm	Hr=44.0cm,Qr=1.65m3/s, n=1000rpm	2008.3	Hydrotu
Turkey	KAHRAMAN 2x750KW	H=Turgo D1=60cm	Hr=187.2m,Qr=0.503m3/s n=1000rpm	2008.4	Hydrotu
Turkey	TIMARLI 3x2400KW	V-Kaplan D1=225cm	Hr=10.5m,Qr=26.67m3/s, n=750rpm	2008.10	Hydrotu
Serbia	GORNE GARE 2X1100KW	H-Francis D1=56cm	Hr=63.5m,Qr=2.05m3/s, n=1000rpm	2008.10	Hydrotu
Serbai	TEGOSNICA 410KW+250KW	V-Propeller D1=74cm	Hr=15.9m,Qr=3.1+1.9m3/s n=750rpm	2008.10	Hydrotu
Serbia	LIVADE 1x450KW	H-Turgo D1=60cm	Hr=257.0m,Qr=0.21m3/s, n=1000rpm	2008.10	Hydrotu
Turkey	GOK 3x3500KW	V-Propeller D1=160cm	Hr=28.7m,Qr=14.0m3/s, n=428.6rpm	2009.6	Hydrotu
Turkey	Poyraz 2x1650KW	H-Francis D1=60cm	Hr=76.0m,Qr=2.535m3/s n=1000rpm	2009.6	Hydrotu
Turkey	Kozan 2x1980KW	H-Francis D1=76cm	Hr=57.24m,Qr=4.0m3/s, n=750rpm	2009.6	Hydrotu
Bosinia	Kuslat 2x600KW	V-Kaplan D1=140cm	Hr=8.0m,Qr=2x8.85m3/s, n=300rpm	2009.7	Hydrotu
Turkey	KORUKOY HES 1x3000KW	H-Pelton D1=95cm	Hr=320m, Qr=1.1m3/s, n=750rpm	2009.11	Hydrotu
Turkey	EGE-3 2x630KW	H-Francis D1=76cm	Hr=21.409m,Qr=2x3.35m3/s, n=500rpm	2010.1	Hydrotu
Turkey	EGE-4 2X940KW	H=Francis D1=68cm	Hr=32.354m,Qr=2x3.6m3/s, n=500rpm	2010.1	Hydrotu
Turkey	BIZNA 3X8500KW	V-Francis D1=145cm	Hr=56.5m,Qr=3x16.957m3/s n=428.6rpm	2010.7	Hydrotu
Turkey	Bingol 2x3200KW+2x600KW	H-Francis D1=92.5+52cm	Hr=55.31m,Qr=2x6.7m3/s+2x 1.3m3/s,n=600+1000rpm	2010.3	Hydrotu
Turkey	Tugra-1 2x2800KW	H-Pelton D1=82cm	Hr=411.728m,Qr=2x0.75m3/s n=1000rpm	2010.5	Hydrotu
Turkey	EGER 2X960KW	H-Francis D1=84cm	Hr=24.62m,Qr=2x4.5m3/s n=500rpm	2010.8	Hydrotu
Turkey	TONYA 2x1320KW	H-Pelton D1=90cm	Hr=182m,Qr=2x0.862m3/s n=600rpm	2010.9	Hydrotu

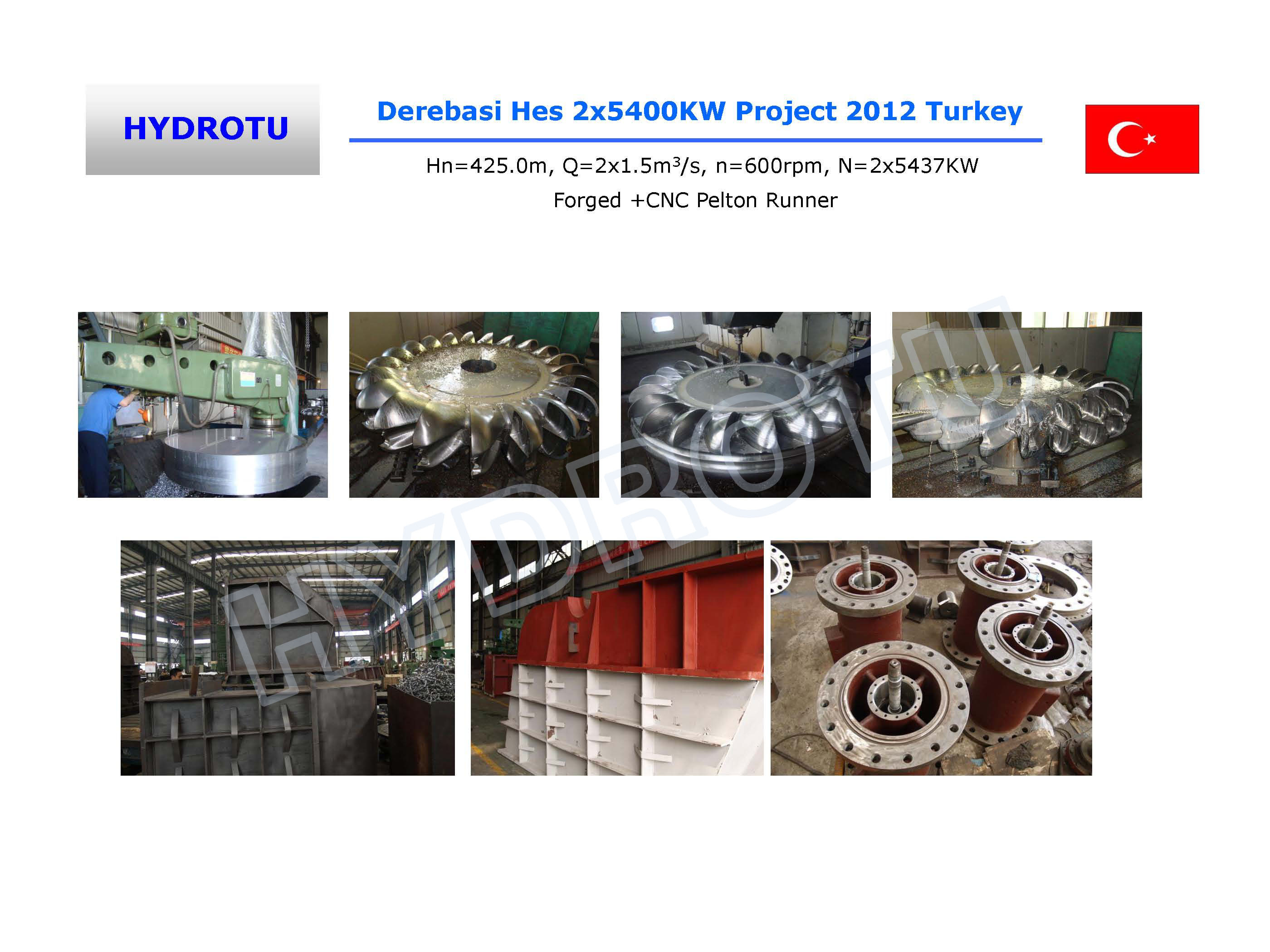

Turkey	DEREBASI 2x5300KW	H-Pelton D1=140cm	Hr=425.6m,Qr=2x1.5m3/s n=600rpm	2011.2	Hydrotu
Turkey	KILINCLI-1 2x970KW	H-Francis D1=82cm	Hr=26.8m,Qr=2x4.2m3/s, n=500rpm	2011.2	Hydrotu
Turkey	MINI 50KW	V-Propeller D1=25cm	Hr=20m,Qr=0.35m3/s n=1000rpm	2011.3	Hydrotu
Serbia	DONJE GARE 2x1000KW+500KW	H-Francis D1=59.5+52.5cm	Hr=77.7m,Qr=2x1.627m3/s+0.796 m3/s,n=1000rpm	2011.4	Hydrotu
Serbia	KALIDRA 700KW	H-Turgo D1=60cm	Hr=204.5m,Qr=0.43m3/s n=1000rpm	2011.4	Hydrotu
Turkey	TURUNCOVE 2X307KW	H-Francis D1=53cm	Hr=22.35m,Qr=2x1.65m3/s, n=750rpm	2011.12	Hydrotu
France	1x520KW	H-Turgo D1=53cm	Hr=110m,Qr=0.6m3/s n=750rpm	2011.12	Hydrotu
Turkey	YAKNICA HEPP 3x4380KW	V-Kaplan D1=160cm	Hr=29.15m,Qr=3x17.2m3/s n=428.6rpm	2012.6	Hydrotu
Turkey	ASYA HEPP 2x342KW	H-Francis D1=60.5cm	Hr=20.3m,Qr=2x2m3/s, n=600rpm	2012.7	Hydrotu
SriLANKA	NAYA GANGA 2x1600KW	H-Pelton D1=120cm	Hr=155m,Qr=2x1.25m3/s n=428.6rpm	2012.7	Hydrotu
Turkey	AKHAN-2 3x5.4MW	V-Francis D1=95cm	Hr=101.34m,Qr=2x1.4m3/s n=750rpm	2013.4	Hydrotu
Turkey	Turga-2 2x6400KW	H-Pelton D1=123cm	Hr=529.0m,Qr=2x1.4m3/s n=750rpm	2013.1	Hydrotu
Tajikistan	VANJ 2x400KW	H-Francis D1=55cm	Hr=20.0m,Qr=2x2.391m3/s n=600rpm	2012.8	Hydrotu
USA	South Fork 2x650KW	H-Turgo D1=55cm	Hr=110.5m,Qr=2x0.708m3/s, n=720rpm	2012.8	Hydrotu
Turkey	Sofular HES 2x1820KW	H-Francis D1=77cm	Hr=42.46m,Qr=2x4.95m3/s n=750rpm	2013.6	Hydrotu
USA	McRoberts Creek 1x240KW	H-Turgo D1=50cm	Hr=134m,Qr=0.218m3/s n=1000rpm	2013.8	Hydrotu
Greece	Lykostomo 1x420KW	H-Turgo D1=50cm	Hr=104m,Qr=0.5m3/s n=750rpm	2014-04	Hydrotu
Turkey	Hizir HEPP 1x2000KW	H-Pelton D1=120cm	Hr=170m,Qr=1.41m3/s n=428.6rpm	2014-03	Hydrotu
Italy	Runner 100KW	H-Pelton D1=52.7cm	Hr=97m, Qr=0.14m3/s n=750rpm	2014-04	Hydrotu
Albania	Saranta 1x700KW+1400KW	H-Francis + Turgo D1=61cm+63cm	Hr=100.0m, Qr=1.65m3/s+0.85m3/s n=1000rpm+600rpm	2014-11	Hydrotu
Canada	Snowshoe 2x700KW	H-Turgo	Hr=115m, Qr=2x0.8m3/s n=720rpm	2015-03	Hydrotu
Italy	Runner 250KW	H-Pelton D1=56cm	Hr=206.48m,Qr=0.14m3/s n=1000rpm	2014-12	Hydrotu
Turkey	Ahmetli 2x5090KW+1600KW	H-Francis D1=115+72cm	Hr=53.76m,Qr=2x10.78+1x3.44m3/s, n=500rpm+750rpm	2015-05	Hydrotu
Turkey	Generji 2x2600KW	H-Francis D1=76cm	Hr=149.46m,Qr=2x1.75m3/s, n=1000rpm	2015-06	Hydrotu
Turkey	SMS-2 1x790KW	H-Francis D1=60cm	Hr=92.0m,Qr=1x1.0m3/s, n=1000rpm	2015-03	Hydrotu
Pakistan	370KW+420KW	H-Turgo D1=42cm+50cm	Hr=120m+136m, Qr=0.4m3/s+0.4m3/s, n=1000rpm	2015-05	Hydrotu
Serbia	MHE Jelici 1x600KW+1x386KW	H-Franics+H-Turgo D1=58cm+55cm	Hr=80m, Qr=0.877m3/s+0.623m3/s, n=1000rpm+600rpm	2016-06	Hydrotu
South Africa	Romans Bay Sea Farm 1x360KW	H-Francis D1=63cm	Hr=22.0m, Qr=2.0m3/s n=600rpm	2016-07	Hydrotu
Serbia	MHE Virovci 1x305KW	H-Turgo D1=55cm	Hr=80m, Qr=0.5m3/s, n=600rpm	2016-07	Hydrotu
Armenia	1x2300KW	H-Francis D1=96cm	Hr=140.0m, Qr=1.787m3/s n=750rpm	2016-08	Hydrotu
Turkey	Yakinca 4# 1x6016KW	L-Francis D1=185cm	Hr=31.0m, Qr=21.9m3/s n=250rpm	2016-12	Hydrotu

Hangzhou Hydrotu Engineering Co.,Ltd.

Small Horizontal Shaft Pelton Hydro Turbine / Pelton Water Turbine With One Or Two Nozzles

Small Horizontal Shaft Pelton Hydro Turbine / Pelton Water Turbine With One Or Two Nozzles

Small Horizontal Shaft Pelton Hydro Turbine / Pelton Water Turbine With One Or Two Nozzles

hydro power turbine

high head turbine

two nozzles horizontal shaft pelton turbine

Small Horizontal Shaft Pelton Hydro Turbine / Pelton Water Turbine With One Or Two Nozzles

Already Running HYDROTU's Hydropower Project All Over the World

Reference Layout Drawing of All Kinds of Hydropower Plant:
