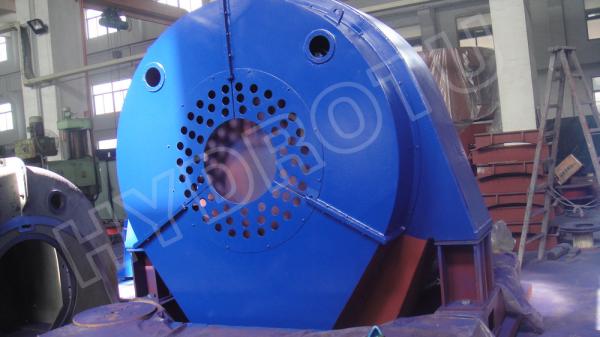

Synchronous Hydroelectric Generator Excitation System Horizontal / Vertical 100KW - 20000KW

Descrition:

The synchronous generator is driven by the water turbine, and form a complete unit with pelton, turgo, Francis, kaplan turbine, its installation structure type is usually determined by the type of the turbine.

hydroelectric generator can be a standalone power supply, can also be multiple machines in parallel into the grid .

The hydroelectric generator always function is peak-load regulation and phase regulation in the grid, because the unit start and stop quickly, operation scheduling is more flexible.

Output capacity: 100KW to 20MW.

Output Voltage and frequency:

Generally, If the frequency is 50HZ, the generator output voltage is 6300V or 10500V, low voltage is 400V. If the frequency is 60HZ, the generator output voltage is 4160V and 480V.

We also can design and manufacturing accordance with the users’ special requirements.

Isolation Class: Stator/ Rotor: F/F class

Rated power factor: 0.8, 0.85 or 0.9, according to use’s requirements.

Cooling type: Air cooling

Bearing and lubricating: Small capacity generator always use the rolling bearing and Self-lubricating.

Temperature measure: PT100 connect to the digital temperature control or inspection devices.

Excitation system: According to the needs of users, the generator can be equipped with different excitation.

Generally, the small capacity generator always use brushless excitation device. Large capacity generator always use the static silicon controlled excitation system.

Specifications:

Competitive Advantage:

HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.

With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.

HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.

HYDROTU are the complete Chinese hydropower equipment provider, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.

Hangzhou HydroTu Engineering Co. Ltd covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be one of the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.

Already Running HYDROTU's Hydropower Project All Over the World

1. Already Running Hydrotu's hydropower Project Partial 1.pdf

2. Already Running Hydrotu's Hydropower project Partial 2.pdf

3. Already Running Hydrotu's Hydropower project Partial 3.pdf

Reference Layout Drawing of All Kinds of Hydropower Plant:

please visit our another website to download:

http://www.hydropower.com.cn/photosdrawings.asp

           Main Reference List of Hydropower Project worldwide By Hydrotu

    (V-vertical;  H-Horizontal;  D1-diameter;  Hr- water head;  Qr- rated flow;  n-Speed)
