    Low Head Hydropower Stations Kaplan Hydro Turbine With Synchronous Generator

    Ask Lasest Price
    Brand Name : Hydrotu
    Model Number : Kaplan Turbine
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C,T/T
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    Low Head Hydropower Stations Kaplan Hydro Turbine With Synchronous Generator

    Kaplan Water Turbine / Kaplan Hydro Turbine with Synchronous Generator for Hydropower Stations


    Descrition:

    The kaplan turbine with vertical shaft arrangement , with three types as open flume, pressure flume, and seal off (concrete spiral case).

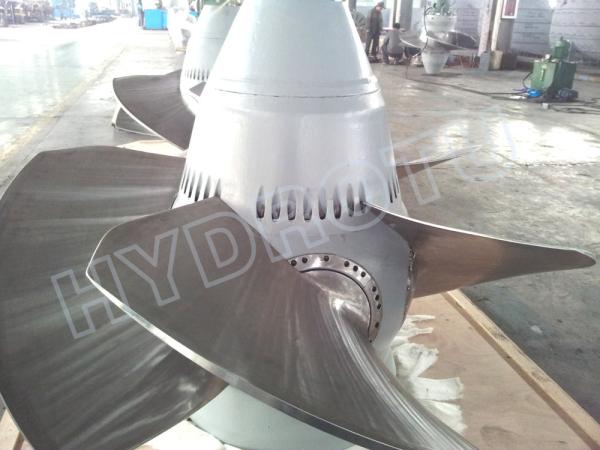

    Generally, Kaplan turbine is composed of distributor, guide vane, runner, draft tube etc.


    The Kaplan (axial-flow) turbine for low head from 2m to 70m. This type of turbine is mostly suitable for hydropower stations with low water head and big flow.


    lts feature is that the water flow passes through the runner axially. The axial-flow turbine can be classified into two forms according to the runner construction: one is fixed blades (Propeller) for small variation of head and power, the other is movable blades (Kaplan) for large variation of head and power.


    Applications:


    1. Water head: 5m - 70m

    2. Power: 100kw - 30Mw

    3. Frequency: 50hz / 60hz

    4. Generator Output voltage: 0.4KV, 3.3KV, 6.3KV, or 10.5KV AC three phase,


    If you are interested in the Kaplan turbine, you should have some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.

    500KW Small Horizontal Shaft Francis Hydro Turbine / Francis Water Turbine generator

    Specifications:


    Type

    Kaplan with fixed blades/Kaplan with movable blades

    Water head

    From 2m to 70m.

    Installation capacity

    From 100KW to 20MW

    Runner blades material

    Stainless steel (0Cr13Ni4Mo)

    Generator type

    Synchronous generator

    Auxiliary Equipment

    Governor, Inlet Valve, unit side panel, excitation system


    Competitive Advantage:


    HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.



    With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.



    HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.

    Low Head Hydropower Stations Kaplan Hydro Turbine With Synchronous Generator

    Low Head Hydropower Stations Kaplan Hydro Turbine With Synchronous Generator


    Quality Low Head Hydropower Stations Kaplan Hydro Turbine With Synchronous Generator for sale
